SW-40kw Wind Turbine,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
SENWEY low cost 40kW wind turbine can be applied in both on-grid and off-grid systems. The output is three phase AC and it can drive loads below 50kW.
Main features:
1. low cost and cheap, higher effective, cost-effective to work with solar panel system;
2. Adopting fiber glass nacelle, good heat dissipation, and attractive appearance;
3. All the core components selected from international supplier like Siemens,
Schneider, Brand guarantees the quality;
4. 100% full power output with independance inverter; not alternator directly connect with grid;
5. Touch screen and remote control simplify the system operational status detecting;
6. Triple protection, ensure the operational security.

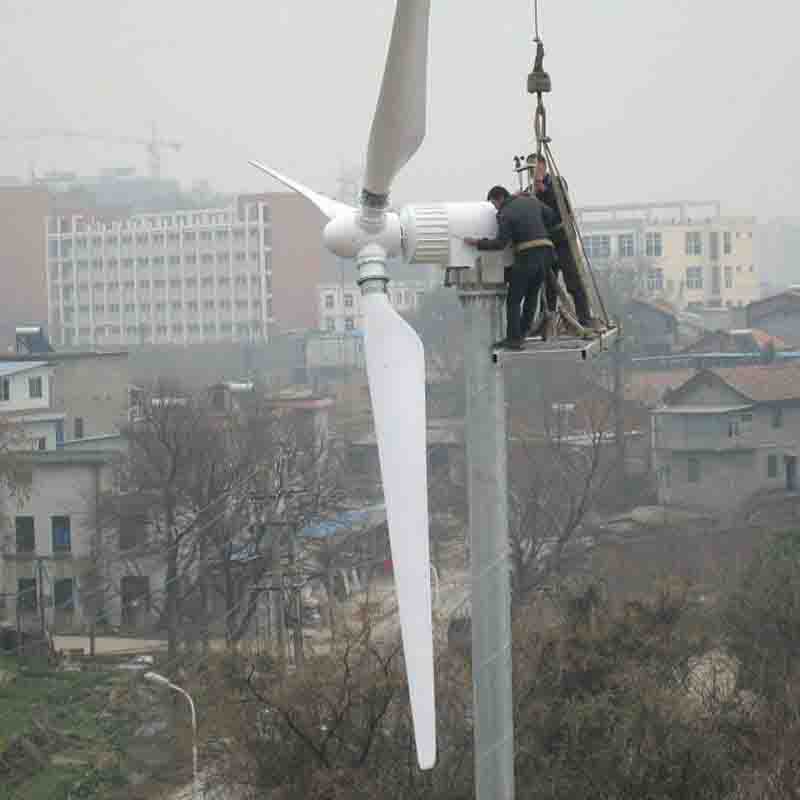

7. 18m Hydraulic tower available for easier maintenance and replacement; save much cost;
Technical parameters
|
Rotor diameter: |
15.0m |
|
Blades quantity: |
3pcs |
|
Direction: |
always upwind |
|
Blades material: |
Glass fiber reinforced plastic |
|
Rated output Power: |
40.0kw |
|
Maximum output Power: |
42.0kW |
|
working voltage: |
DC240/500V,AC220V/380V |
|
Annual average energy production: |
65MWH (in average 5m/s wind speed) |
|
working wind speed: |
3-25m/s |
|
Initial wind speed: |
3.0m/s |
|
Nominal wind speed: |
12.0m/s |
|
Storm-stand: |
up to 50m/s |
|
Max rotate speed: |
200r/min |
|
Wind turbine type: |
Three-phase, PMG Alternator |
|
Working temperature: |
from -40 to +60 C |
|
Blade Pitch Control |
Fixed Pitch |
|
Over Speed Protection |
Auto-furl |
|
Speed regulation methods: |
Yawing motor and electrical magnet switch |
|
Stop Methods |
Manual Brake + Hydraulic Brake+ Auto Brake |
|
Gearbox: |
None, Direct Drive |
|
Batttery full charge time: |
about 8 hours |

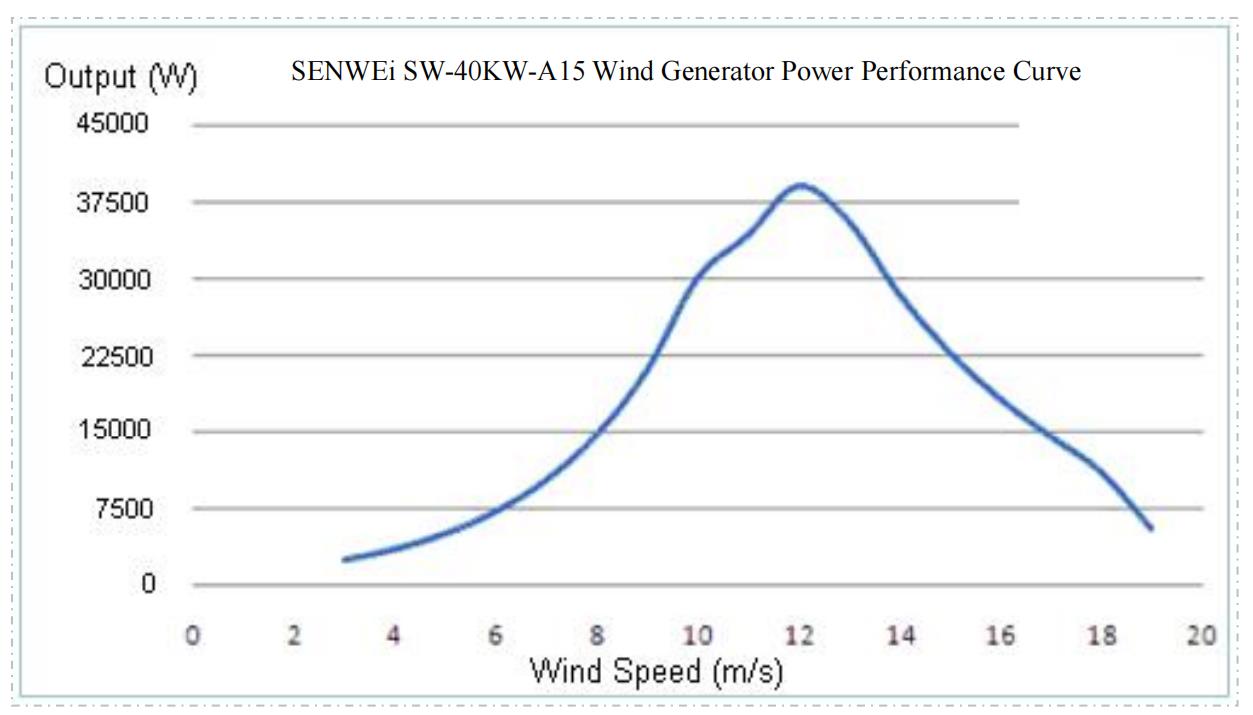

Power Curve
Estimated Annual Energy Production
|
SWF15.0-40KW Electric-controlled wind turbine |
Average wind speed |
Average Energy Turbulence |
||||
|
m/s |
mph |
Ideal |
15% |
20% |
25% |
|
|
4.5 |
10.1 |
45,440 |
38,374 |
36,352 |
34,330 |
|
|
5.0 |
11.2 |
50,915 |
43,428 |
40,732 |
38,436 |
|
|
5.5 |
12.3 |
58,930 |
50,440 |
46,944 |
44,448 |
|
|
6.0 |
13.4 |
71,000 |
60,440 |
56,944 |
53,258 |
|
|
Estimated Annual Energy Production (kWh) |
||||||
