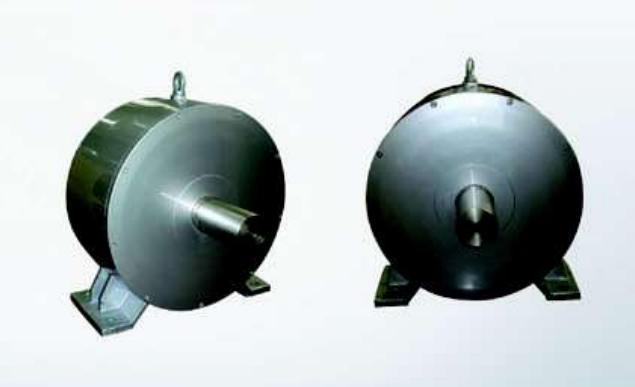

Horizontal Axis Mounting PMG 3KW-30KW
Horizontal axis permanent magnet generator 3KW-30KW is a device that converts mechanical energy into electrical energy, with advantages such as small size, high efficiency, and no need for excitation system. It is commonly used in wind power generation and other scenarios.
Core Features:
l Structural principle: Using permanent magnets instead of traditional excitation windings, the coil is cut by a rotating magnetic field to generate current, and the magnetic field can be maintained without external power supply.
l Speed and power: Typical products include a 300W three-phase AC permanent magnet generator with a rated speed of 158RPM (revolutions per minute) and a starting wind speed of 2.5m/s, suitable for low wind speed environments.
l Materials and Design: The shell is mostly made of high-strength aluminum alloy, and the blade material is reinforced fiberglass. It supports 3-6 blade configurations and has the function of automatically adjusting the windward angle.
Advantages and limitations
Advantage:
l Small in size and lightweight, suitable for small devices such as household or wind power systems.
l Carbon brushes, slip rings, and other vulnerable components result in low maintenance costs.
l Direct drive design reduces transmission losses and has high efficiency.
Limitations:
l Difficulty in regulating output voltage, and high-frequency iron loss may lead to temperature rise.
l Extreme temperatures or mechanical vibrations should be avoided to prevent demagnetization of permanent magnets.
Application scenarios
Mainly used in wind power generation, electric vehicles, medical equipment and other fields, especially suitable for occasions that require miniaturization and high reliability
Electrical Specification
Rated output power (W):
20K
30K
12K
15K
3.5K
5K
Rated rotation speed (RPM):
100
100
135
125
250
240
Rectified DC current rate output (A):
48
73
25
28
11
10
Required Torque at rated power (NM):
2129
3300
947
1284
150
249
Phase Resistance (Ohms):
0.6
0.36
0.9
1.1
2.7
3.3
Output Wire Square Section(mm):
16
20
10
10
6
6
Output Wire length (mm):
200
500
200
200
100
100
Insultation :
H class
Generator configuration :
3 Phase star connected AC output
Design lifetime :
>20 years
Mechanism Specification
|
Mounting Type : |
Horizontal |
|||||
|
Weight (kg) : |
585 |
760 |
350 |
375 |
78 |
140 |
|
Starting Torque (NM) : |
<30 |
<37 |
<14 |
<15 |
<2.0 |
<3.5 |
|
Rotor Inertia (kg.m2) : |
3.24 |
4.47 |
1.59 |
1.79 |
0.066 |
0.138 |
|
Bearing Type ： |
High standard NSK 23024C (Front) NSK 6220DDU (Rear) |
|||||
Material Specification
|
Shaft Material: |
Nickle plated 40 Cr Steel with quenching and tempering treatment |
|
Shaft Bearing: |
High standard SKF or NSK bearing |
|
Outer Frame Material: |
Steel with anti-corrosion treatmen |
|
Fasteners (nuts and bolts): |
High standard Stainless Stee |
|
Windings Temperature Rating: |
180 degrees Celsius |
|
Magnet Material: |
NdFeB (Neodymium Iron Boron) |
|
Magnets Temperature Rating |
150 degrees Celsius |
|
Lamination Stack |
High specification cold-rolled Steel |
