Vertical axis wind turbine 3kW SW-VAWT-3KW wind turbine,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers

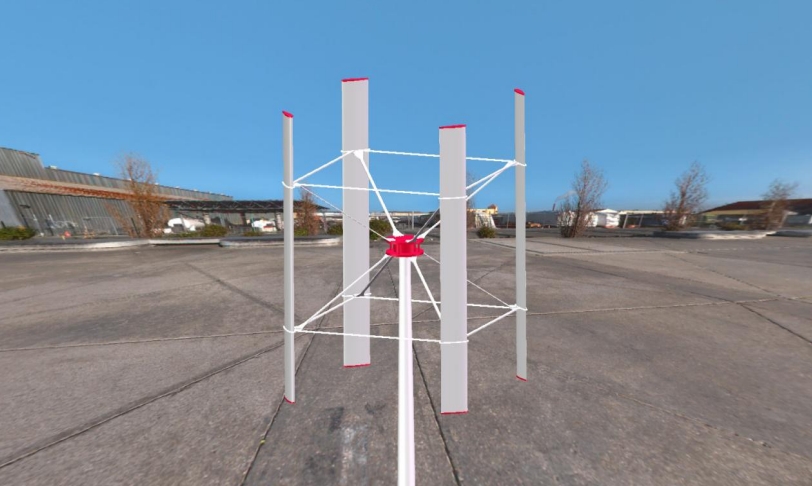

Vertical axis H-type SW-VAWT-3KW wind turbine --| Home | wind solar hybrid system | Off grid | On grid
Advantages of Vertical Axis Wind Turbines
ü Safe and quiet, low speed and low noise
ü Not affected by wind direction
ü Safe for birds
ü Maintenance-free, long service life
ü Lower tower height requirements
ü Lower foundation requirements
Superior to other vertical axis wind turbines
? Both lift torque and drag torque can be obtained
? Low rated wind speed of 11m/s results in higher efficiency of wind power generation,
? Wide effective wind speed range and increased power generation
? Emergency manual braking;
? Automatic electromagnetic brake;
? Stall control;
? release extra load on dump-load box to speed down the wind turbine
Specification
Model
SW - VAWT-3KW
Rotor diameter
3.2m
Blades quantity:
5pcs
Blade Length:
3.2m
Blades material:
Aluminium alloy * 5pcs
Rated output:
3.0KW
Maximum output:
3.3KW
working voltage:
DC48v/120/240/360V, AC220/380V
working wind speed:
3-20m/s
Initial wind speed:
2.5m/s
Nominal wind speed:
11.0m/s
Storm-stand:
up to 45m/s
Rated rotate speed:
120r/min
Wind turbine type:
Three-phase, PMG Alternator 360V
Working temperature:
from -40 to +60 C
Blade Speed Control
Electromagnetic stall protection
Stop methods:
Automatic electromagnetic brake, handbrake
Speed regulation methods:
Stall protection
Gearbox:
None, Direct Drive
Accumulators full charge time:
about 8 hours
Over-speed protection
Automatic electromagnetic brake

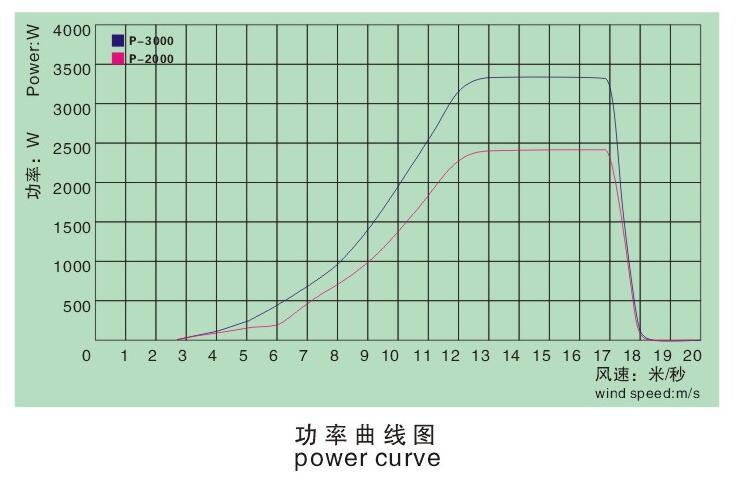

SW-VAWT-3KW Power Curve
Estimated Annual Energy Production
SW-VAWT-3KW Vertical axis H-type
Average wind speed
Average Energy Turbulence
m/s
mph
Ideal
15%
20%
25%
4.5
10.1
5,475
4,654
4,380
4,106
5.0
11.2
6,132
5,212
4,906
4,599
5.5
12.3
7,884
6,701
6,307
5,913
6.0
13.4
8,760
7,446
7,008
6,570
Estimated Annual Energy Production (kWh)
