SW-50KW-A18 Electric controlled wind turbine, small wind turbine-senwei-China best wind turbine,wind turbine for home,wind turbine manufacturers

Author:senwei   Date:2024-04-15

SWF-50KW Wind Turbine New-Electric Controlled Wind Turbine (UNIQUE DESIGN With Tailless)




In order to adapt to the new small wind turbine market, senwei has developed a new electronically controlled tailless 50kw wind turbine. Compared with the variable pitch wind turbine, the electronically controlled tailless wind turbine has the advantages of low cost, light weight, convenient installation, high automation and intelligence, and can realize remote monitoring. All programs are controlled by computer and completed by intelligent PLC program. This type of wind turbine is suitable for application in It is especially suitable for water pump irrigation, agricultural water extraction, aquaculture, remote military camp and isolated island areas.



Main features:
1. Low starting wind speed, beautiful appearance and low vibration; 2. Humanized flange installation design is used to facilitate installation and maintenance; 3. High quality alloy steel body, using high-quality glass fiber reinforced plastic blades, corrosion resistance enhanced, both beautiful and durable, color can be made according to customer requirements; 4. The generator adopts patented permanent magnet rotor alternator with special rotor design, which can effectively reduce the resistance torque of the generator, which is only 1 / 3 of that of ordinary motor. Meanwhile, it makes the wind turbine and generator have better matching characteristics and the operation reliability of the unit. 5.The maximum power tracking intelligent

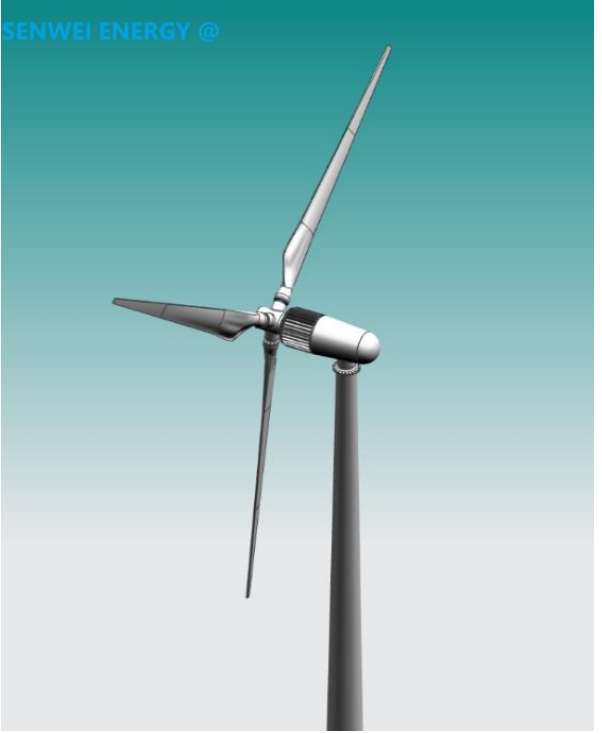

Structure Design Drawing:

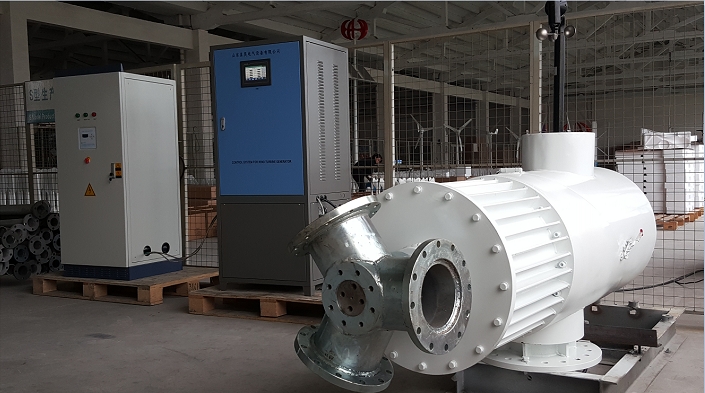

Wind Turbine Nacelle Real Photos:




Main Technical Parameter

Wind rotor diameter (m)

17.8

blade Material/ quantity

Reinforced fiber glass*3

Rated power/max power (kw)

50/55

Rated wind speed (m/s)

10.0

Start-up wind speed (m/s)

2.5

Working wind speed range (m/s)

3-25

Security wind speed (m/s)

≤45

Rated rotate speed (r/min)

60

Working voltage (V)

DC0-800V

Generator type

Permanent magnet 3-phase AC generator

Output control method

Frequency instruction ( optional )

Speed regulation method

Fixed Pitch, Yaw, Magnetic control

Stop method

Auto-Yaw, hydraulic brake,Manual

Wind turbine main body weight

2600 kg

Resist atmosphere corrosion age limit

>20years

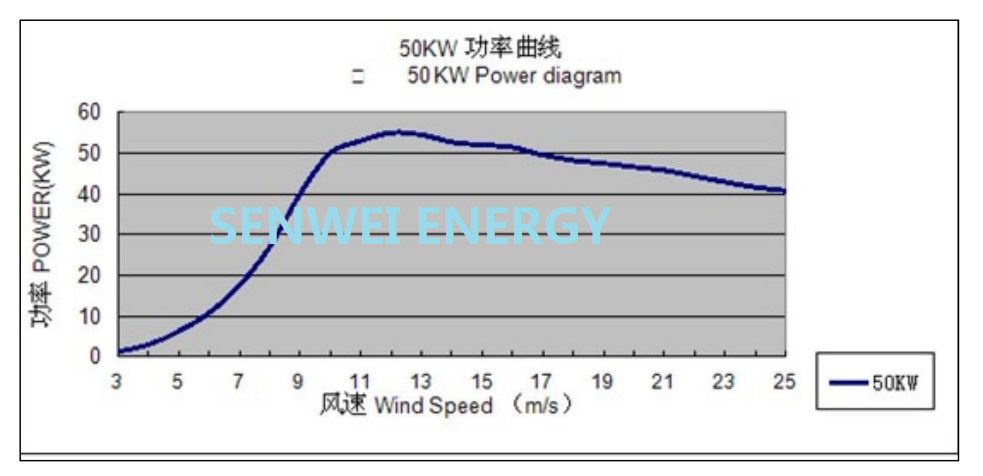

Power Curve
