Wind MPPT Controller 1kw-30kw, small wind turbine-senwei-China best wind turbine,wind turbine for home,wind turbine manufacturers

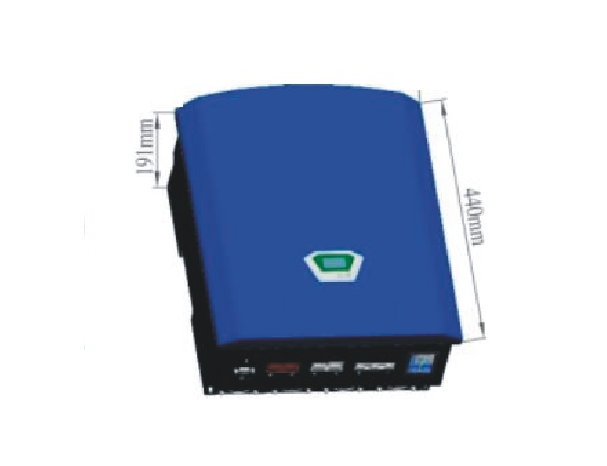

WWS Series Wind MPPT Controller 1kw-30kw,
System Diagram
Application 1: On-grid wind power generation system
Application 2: Household wind power generation system
Application 3: DC micro-grid wind power generation system
Applications
? Independent wind power plant
? Independent household wind power generation system
? Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
? Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.
Features
? Can be applied to grid-tied system, off-grid system and grid-tied energy storage system.
? Several functions are optional, such as PV control function, wind speed measure function, rotational speed control function and temperature compensation function.
? RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/Bluetooth/RJ45 connection)
? MPPT power curve settable
? Complete protection function
? Standard MODBUS protocol optional
Technical Parameters
|
1kW |
|
|
|
Model |
WW10-48-48 |
WW10-240-48 |
|
Type |
Boost |
|
|
Wind Turbine Input |
||
|
Rated input power |
1kW |
|
|
Rated input voltage |
56Vdc |
|
|
Input voltage range |
12~64Vdc (Start charge voltage:12Vdc, factory default, settable) |
|
|
Rated input current |
21A |
|
|
Brake by hand |
Keep press the button for 5s to unload completely, and then recover by hand. |
|
|
Switch “ON” the brake switch |
||
|
Brake by over current |
25A (factory default, 0~25A settable)unload completely when reached the set current, and recover automatically after working 10mins. |
|
|
Brake by overvoltage |
Refer to “output overvoltage” control |
|
|
Brake by over wind speed (optional) |
18m/s (0-30m/s settable), unload completely when reached the set wind speed, and recover automatically after 10mins (and the speed should be less than 15m/s.) |
|
|
Brake by over rotational Speed (optional) |
500r/min (factory default,0~1000r/min settable)Unload completely when reached the set rotational speed, and recover automatically after10mins. |
|
|
Note: Part of parameters can be adjusted according to customer’s specific demand. |
||
|
2kW |
|
|
|
Model |
WW20-48-48 |
WW20-48-240 |
|
Type |
Boost |
Buck |
|
Wind Turbine Input |
||
|
Rated input power |
2kW |
|
|
Rated input voltage |
56Vdc |
280Vdc |
|
Input voltage range |
12~64Vdc |
60~320Vdc |
|
Start charge voltage |
12Vdc (factory default,8Vdc~64Vdc settable) |
60Vdc (factory default,40Vdc~320Vdc settable) |
|
Rated input current |
42A |
9A |
|
Brake by hand |
Keep press the button for 5s to unload completely, and then recover by hand. |
|
|
|
Switch “ON” the brake switch |
|
|
Brake by over current |
50A (factory default,0~50A settable)Unload completely when reached the set current, and recover automatically after working 10mins. |
10A (factory default,0~10A settable)Unload completely when reached the set current, and recover automatically after working 10mins. |
|
Brake by overvoltage |
Refer to “output overvoltage” control |
320Vdc (factory default,220Vdc~320Vdc settable)PWM unload step by step once reached the set unload voltage, and it will unload completely if the voltage rise 20Vdc more. |
|
|
|
|
|
Brake by over wind speed (optional) |
18m/s (0-30m/s settable), unload completely when reached the set wind speed, and recover automatically after 10mins (and the speed should be less than 15m/s.) |
|
|
Brake by over rotational Speed (optional) |
500r/min (factory default,0~1000r/min settable)Unload completely when reached the set rotational speed, and recover automatically after working 10mins. |
|
|
3kW |
|
|
|
|
Model |
WW30-48-240 |
WW30-120-120 |
WW30-240-240 |
|
Type |
Buck |
Boost |
|
|
Wind Turbine Input |
|||
|
Rated input power |
3kW |
||
|
Rated input voltage |
280Vdc |
140dc |
280Vdc |
|
Input voltage range |
60~320Vdc |
30~160Vdc |
60~320Vdc |
|
Start charge voltage |
60Vdc (factory default,40Vdc~320Vdc settable) |
30Vdc (factory default,20Vdc~160Vdc settable) |
60Vdc (factory default,40Vdc~320Vdc settable) |
|
Rated input current |
13A |
25A |
13A |
|
Brake by hand |
Keep press the button for 5s to unload completely, and then recover by hand. |
||
|
|
Switch “ON” the brake switch |
||
|
Brake by over current |
15A (factory default,0~15A settable)Unload completely when reached the set current, and recover automatically after working 10mins. |
30A (factory default,0~30A settable)Unload completely when reached the set current, and recover automatically after working 10mins. |
15A (factory default,0~15A settable)Unload completely when reached the set current, and recover automatically after working 10mins. |
|
Brake by overvoltage |
320Vdc (Factory default), PWM unload step by step once reached the set unload voltage, and it will unload completely if the voltage rise 20Vdc more. |
Refer to “output overvoltage” |
|
|
Brake by over wind speed (optional) |
18m/s (0-30m/s settable), unload completely when reached the set wind speed, and recover automatically after 10mins (and the speed should be less than 15m/s.) |
||
|
Brake by over rotational Speed (optional) |
500r/min (factory default,0~1000r/min settable)Unload completely when reached the set rotational speed, and recover automatically after working 10mins. |
||
