Author：senwei Date：2024-04-13

Solar/Wind Inverter, power inverter, solar inverter china

An Solar Inverter is an electrical device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. A Solar Inverter changes DC voltage from batteries or solar panels, into standard household AC voltage so that it can be used by common tools and appliances.There has Two type Solar inverter: off-grid inverter (stand-alone Inverter),and Grid tied inverter ( Grid Connected Inverter).

1. off-grid inverter (stand-alone Inverter)
Off-grid inverter or Stand-alone inverter is designed for remote stand-alone application or off-grid power system with battery backup where the inverter draws its DC power from batteries charged by PV array and converts to AC power. Stand-alone inverters provide variety of size and output waveform depending on your applications. For the best output, the pure sine inverter is required. It suits for solar home system, rural electrification, village electrification in remote area where the utility grid is not available.

1.2 Pure Sine Wave Inverter

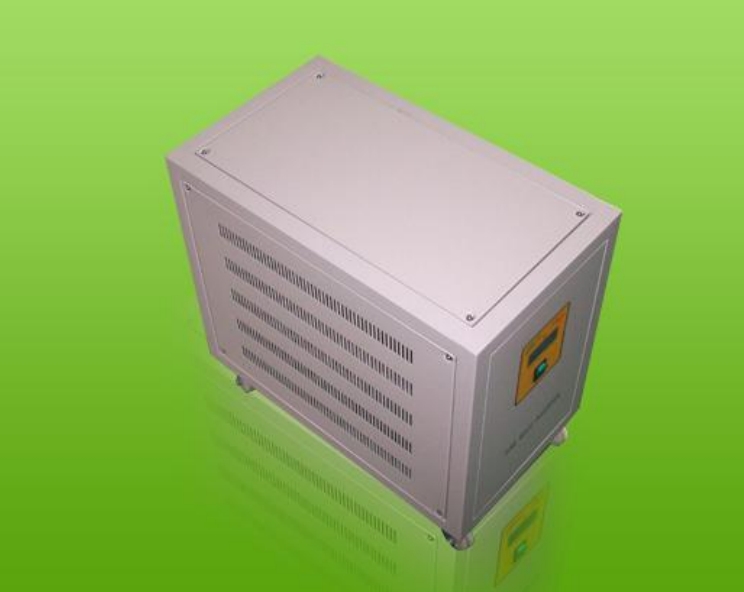

The stand-alone pure sine wave inverter is designed for inverting direct current of storage battery into rated output voltage for home appliances’ use( such as TV, Computer, Light, Vaccum cleaner and so on) With excellent appearance、clear LCD display、simple operation.

It has perfect protection function,suce as low battery protection, over load protection, short circuit protection, over temperature protection, reverse connect protection etc . It adopts the American origin Micro-controller asa control core component, and power parts of an apparatus adopt the import component, too. It is reliable, safe, high efficient, long service life.

1.3 Technial Parameters

Model	WI10-24	WI10-48
Rated Output Capacity	1kVA
Rated Battery Voltage	24 V_DC	48 V_DC
Over Voltage Point	34V_DC	68V_DC
Over Voltag Recovery Point	33V_DC	66V_DC
Under Voltage Point	21V_DC	42V_DC
Under Voltag Recovery Point	24V_DC	48V_DC
No Load Loss	0.7A	0.3 A
Output Waveform	Pure Sine Wave
Display Mode	LCD
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Cooling Method	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Ability	120% one minute,150% 10 seconds
Inverting Efficiency	Max. 90%
Noise（1m）	≤40dB
Dielectric Strength	1500V_AC, one minute
Protection Type	Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm	470×280×240
Weight（KG）	12
FOB Shanghai,China
We can adjust the configurations and parameters according to customers’ requirement.

Model	WI20-48	WI20-96	WI20-120	WI20-220	WI20-240
Rated Output Capacity	2kVA
Rated Battery Voltage	48V_DC	96V_DC	120V_DC	216V_DC	240V_DC
Over Voltage Point	68V_DC	134V_DC	170V_DC	306V_DC	340V_DC
Over Voltag Recovery Point	66V_DC	132V_DC	160V_DC	297V_DC	320V_DC
Under Voltage Point	42V_DC	84V_DC	105V_DC	189V_DC	210V_DC
Under Voltag Recovery Point	48V_DC	96V_DC	120V_DC	216V_DC	240V_DC
No Load Loss	0.4A	0.2A	0.15A	0.1A	0.1A
Output Waveform	Pure Sine Wave
Display Method	LCD
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Cooling Method	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Ability	120% one minute,150% 10 seconds
Inverting Efficiency	Max. 90%
Noise（1m）	≤40dB
Dielectric Strength	1500V_AC, one minute
Protection Type	Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm	470×430×300
Weight（KG）	19.5
FOB Shanghai,China
We can adjust the configurations and parameters according to customers’ requirement.

Model	WI50-96	WI50-120	WI50-48	WI50-240
Rated Output Capacity	5kVA
Rated Battery Voltage	96V_DC	120V_DC	48V_DC	240V_DC
Over Voltage Point	134V_DC	170V_DC	68V_DC	340V_DC
Over Voltag Recovery Point	132V_DC	160V_DC	66V_DC	320V_DC
Under Voltage Point	84V_DC	105V_DC	42V_DC	210V_DC
Under Voltag Recovery Point	96V_DC	120V_DC	48V_DC	240V_DC
No Load Loss	0.4A	0.3A	0.12A	0.1A
Output Waveform	Pure Sine Wave
Display Method	LCD
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Cooling Method	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Ability	120% one minute,150% 10 seconds
Inverting Efficiency	Max. 90%
Noise（1m）	≤40dB
Dielectric Strength	1500V_AC, one minute
Protection Type	Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm	670×420×670
Weight（KG）	60
FOB Shanghai,China	Single Phase--	Single Phase--
FOB Shanghai,China	Three Phase--	Three Phase--
We can adjust the configurations and parameters according to customers’ requirement.

Model	WI100-120	WI100-220	WI100-240	WI100-360
Rated Output Capacity	10kVA
Rated Battery Voltage	120V_DC	216V_DC	240V_DC	360V_DC
Over Voltage Point	170V_DC	306V_DC	340V_DC	510V_DC
Over Voltag Recovery Point	160V_DC	297V_DC	320V_DC	495V_DC
Under Voltage Point	105V_DC	189V_DC	210V_DC	315V_DC
Under Voltag Recovery Point	120V_DC	216V_DC	240V_DC	360V_DC
No Load Loss	0.3A	0.4A	0.4A	0.25A
Output Waveform	Pure Sine Wave
Display Method	LCD
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Cooling Method	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Ability	120% one minute,150% 10 seconds
Inverting Efficiency	Max. 90%
Noise（1m）	≤40dB
Dielectric Strength	1500V_AC, one minute
Protection Type	Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm	600×890×600
Weight（KG）	93
FOB Shanghai,China	Single Phase--	Single Phase--
FOB Shanghai,China	Three Phase--	Three Phase--
We can adjust the configurations and parameters according to customers’ requirement.

Model	WI200-220	WI200-240	WI200-360
Rated Output Capacity	20kVA
Rated Battery Voltage	216V_DC	240V_DC	360V_DC
Over Voltage Point	306V_DC	340V_DC	510V_DC
Over Voltag Recovery Point	297V_DC	320V_DC	495V_DC
Under Voltage Point	189V_DC	210V_DC	315V_DC
Under Voltag Recovery Point	216V_DC	240V_DC	360V_DC
No Load Loss	0.5A	0.5A	0.8A
Output Waveform	Pure Sine Wave
Display Method	LCD
Display Parameter	Battery Voltage, Output Voltage, State Parameter
Cooling Method	Fan
Rated Output Voltage	110/120/220/230/240 V_AC
Total Harmonic Distortion	≤4％
Output Frequency	50/60 Hz±0.05Hz
Dynamic Response	5%
Overload Ability	120% one minute,150% 10 seconds
Inverting Efficiency	Max. 90%
Noise（1m）	≤40dB
Dielectric Strength	1500V_AC, one minute
Protection Type	Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection
Operation Ambient Temperature	-20～50℃
Operation Altitude	≤4000m
Operation Ambient Humidity	0~90%,no condensing
Size(W×H×D)mm
Weight（KG）
FOB Shanghai,China	Single Phase--
	Three Phase--
We can adjust the configurations and parameters according to customers’ requirement.

If need to get more info of s olar/wind power system for your home, please contact us:
online way: Whatsapp: +86-18806776641/ Skype: doris421pu
Email way: sales@solarpanelkitschina.com; sales@windpowercn.com
