Vertical axis wind turbine 500W-5kW,wind turbine for home-Senwei-China best wind turbine,wind turbine manufacturers
Main Parameter:
Vertical Axis Wind Turbine Generator 300W 600W 1KW 3KW China Price---
Mini-Vertical axis wind turbine 10W-100W

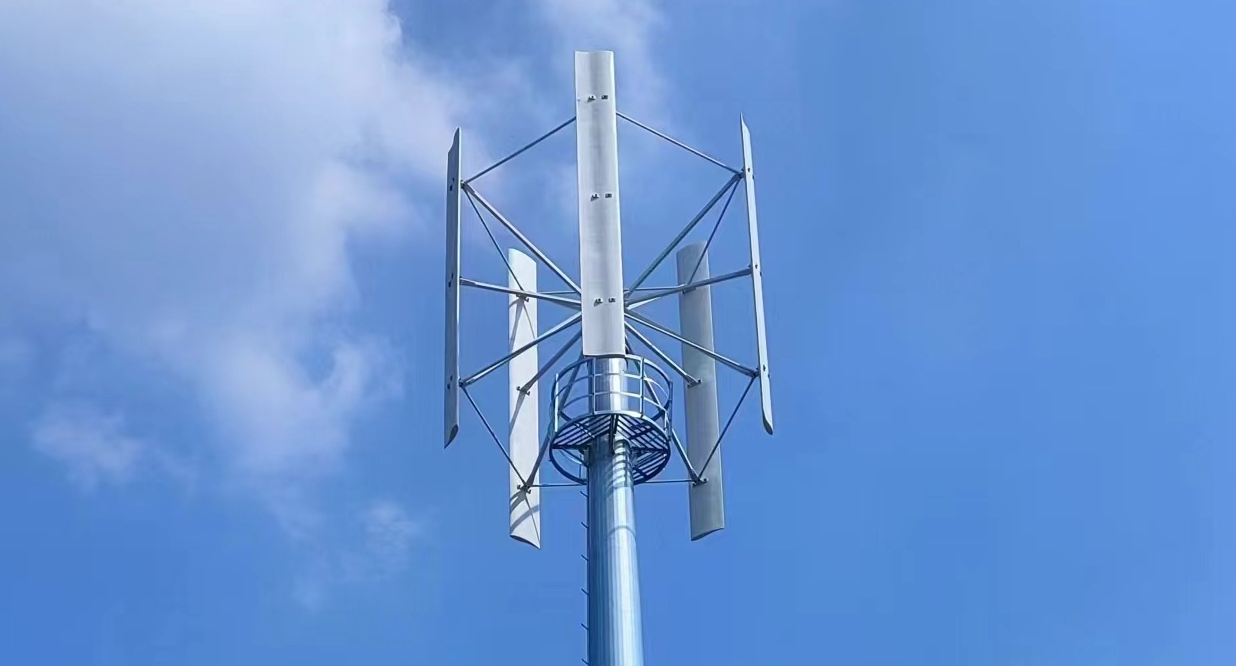

Vertical Axis Wind Turbine involves a variety of subjects, such as Structure Mechanics, Product Design, Permanent-Magnet Machine, Machine Design, Aerodynamics, Wind Tunnel Test, Computational Fluid Dynamics and Maglev Technology. VAWT vertical wind generator is made of light-weight aluminum, titanium and other light special materials, mainly connected by stainless steel fasteners. Owing to the advanced Maglev Technology and the power of Super Magnets, VAWT wind power generator works stably without any mechanical friction. When driven by wind, the permanent-magnet machine rotates and the coil winding inside is moved relative to the permanent magnet, and thus AC is generated.
|
Vertical Axis Wind Turbine Technical Parameters (Mini-10W-50W) |
||||
|
Item |
10w |
20w |
30w |
50w |
|
Blade Length(mm) |
300 |
350 |
520 |
745 |
|
Blades rotor diameter(mm) |
328 |
560 |
560 |
560 |
|
Blade Material |
Aluminum alloy |
|||
|
Blade Quantity |
5 |
5 |
5 |
5 |
|
Rated wind speed(m/s) |
10 |
10 |
10 |
10 |
|
Start-up wind speed(m/s) |
2 |
2 |
2 |
2 |
|
Working wind speed (m/s) |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-20 |
|
Security wind speed (m/s) |
35 |
35 |
40 |
40 |
|
Starting torque(n/m) |
0.05 |
0.07 |
0.1 |
0.13 |
|
Generator type |
three phase, PM,AC |
|||
|
Rated Power |
10W |
20W |
30W |
50W |
|
Max. Power |
15W |
30W |
45W |
60W |
|
Rated RPM(r/min.) |
500 |
400 |
400 |
400 |
|
working voltage |
DC12V |
DC12V-24V |
DC12-24V |
DC12-24V |
|
Weight |
2.3kgs |
6kgs |
7.5kgs |
10.5kgs |
|
Vertical Axis Wind Turbine Technical Parameters (Mini-100W-300W-500W-800W) |
||||
|
Item |
100w |
300w |
500w |
800w |
|
Blade Length(mm) |
1200 |
1400 |
1800 |
2200 |
|
Blades rotor diameter(mm) |
900 |
900 |
900 |
900 |
|
Blade Material |
Aluminum alloy |
|||
|
Blade Quantity |
5 |
5 |
5 |
5 |
|
Rated wind speed(m/s) |
12 |
12 |
12 |
12 |
|
Start-up wind speed(m/s) |
2 |
2 |
2 |
2 |
|
Working wind speed (m/s) |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-20 |
|
Security wind speed (m/s) |
40 |
40 |
40 |
40 |
|
Starting torque(n/m) |
0.45 |
1.1 |
2.1 |
2.6 |
|
Generator type |
three phase, PM,AC |
|||
|
Rated Power |
100W |
300W |
500W |
800W |
|
Max. Power |
110W |
330W |
550W |
880W |
|
Rated RPM(r/min.) |
400 |
400 |
360 |
360 |
|
working voltage |
DC12-24V |
DC12V-24V |
DC12-24-48V |
DC12-24-48V |
|
Weight |
13.3kgs |
16kgs |
17.5kgs |
20.5kgs |

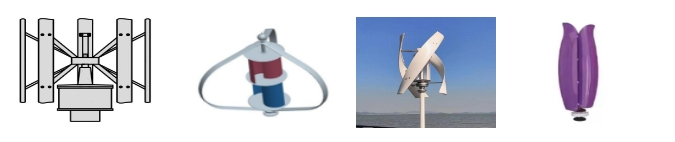

vertical axis wind turbine/wind power generator/tulip wind turbine/vertical wind generator 1kW /2kw /3kw/5kw/10kw /20kw, cheap price disc coreless permanent magnet generator for wind turbine easy maintenance

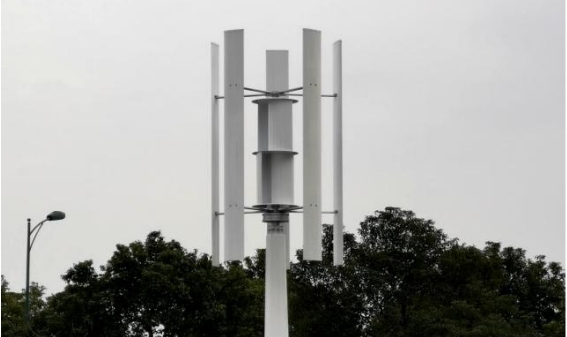

SENWEI Vertical axis wind generator (VAWTs) 1kw to 5kw, 10kw/20kw is a type of wind generator where the main rotor shaft is set vertically. VAWTs offer a number of advantages over traditional horizontal-axis wind generator (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. They are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
SENWEI vertical Axis wind generator are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be installation at urban .They are easily maintained and can be installed on rooftop and similar tall structures.
SENWEI vertical Axis wind generator Parameters 1KW/2KW/3KW/5KW/10KW/20KW
|
Vertical Axis Wind Turbine Technical Parameters (1000W-2000W-3000W-5000W) |
||||
|
Item |
1000w |
2000w |
3000w |
5000w |
|
Blade Length(mm) |
1800 |
2600 |
3200 |
3650 |
|
Blades rotor diameter(mm) |
1800 |
2600 |
3200 |
3500 |
|
Blade Material |
Aluminum alloy |
|||
|
Blade Quantity |
3 |
4 |
5 |
5 |
|
Rated wind speed(m/s) |
12 |
12 |
12 |
12 |
|
Start-up wind speed(m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
|
Working wind speed (m/s) |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-20 |
|
Security wind speed (m/s) |
45 |
45 |
45 |
45 |
|
Stop Way (Auto/Manual) |
Auto Brake |
Auto Brake |
Auto Brake |
Auto Brake |
|
Generator type |
three phase, PM,AC |
|||
|
Rated Power |
1000W |
2000W |
3000W |
5000W |
|
Max. Power |
1100W |
2350W |
3400W |
6000W |
|
Rated RPM(r/min.) |
180 |
160 |
120 |
120 |
|
working voltage |
DC12-300V |
DC24V-300V |
DC48-360V |
DC48-500V |
|
Weight |
68kgs |
95kgs |
175kgs |
310kgs |
|
Vertical Axis Wind Turbine Technical Parameters 10KW/20KW |
||
|
Item |
10000w |
20000W |
|
Blade Length(mm) |
4000 |
6500 |
|
Rotor diameter(mm) |
4000 |
6000 |
|
Blade Material |
Aluminum alloy |
|
|
Blade Quantity |
5 |
5 |
|
Rated wind speed(m/s) |
11 |
11 |
|
Start-up wind speed(m/s) |
2 |
2 |
|
Working wind speed m/s |
3.0-20 |
3.0-20 |
|
Security wind speed (m/s) |
45 |
45 |
|
Brake Way |
Auto Brake+Manual Brake |
Auto brake+ manual brake |
|
Generator type |
three phase, PM,AC |
|
|
Rated Power |
10kW |
20kW |
|
Max. Power |
11kW |
25kW |
|
Rated RPM(r/min.) |
100 |
90 |
|
working voltage |
DC120V-500V |
DC240-650V |
|
Weight |
460kgs |
660kgs |
